20 Gauge Corrugated Galvanized Steel Sheet 40 - 275 G/M2 Zinc Coating

Brand Name : QINYUAN

Model Number : QY-01

Certification : SGS,ISO,CE

Place of Origin : CHINA

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100000 Tons/Year

Delivery Time : 25-30days

Packaging Details : Standard exporting packaging or as requested.

Product Name : Corrugated Galvanized Steel Roofing Sheet

Zinc coating : 40-275g/m2

Spangle : Regular, small, big or zero

Coil Weight : 3-5 Tons

Thickness : 0.13mm-0.8mm

Coil ID : 508mm

Packing : Standard exporting packaging or as requested.

MOQ : 25Tons

Payment : T/T, L/C

Application : roofing sheet

Contact Now

20 gauge galvanized corrugated steel roofing sheet, zinc corrugated galvanized steel sheet

Product Description

1	Product	corrugated steel roofing sheet
2	Material	JIS G3302 SGCH(full hard);Zinc coating:40-275g/m2
3	Physical properties	Tensile strength:220-550Mpa;Yield strength:350Mpa; Elongation: 10%-20%;Hardness>50
4	Thickness	0.13mm-0.8mm
5	Width after corrugated	650mm-1150mm;Regular width:800mm, 840mm, 900mm
6	Length	1600mm-4000mm or according to customers' requests
7	Wave	Wave height:18mm(+/-2)mm. Wave distance:76.2mm (+/-3)mm.
8	Application	1.Exterior decoration of buildings: Roof and wallboards of industrial, commercial,residential and public facilities.
		2.Interior decoration of buildings: Wallboards, ceiling boards,partition boards, fireproof doors
		3.Building accessories: Window panels, signboards.
		4.Home appliances: Oil/gas boilers, rice buckets, portable gas burners.
9	Advantages	1.design according to customers'requirements.
		2.manufacture under complete quality control system--ISO9001.
		3.it is light,easy to be installed.
		4.many colors available,with elegant and noble looking.it is widely used in factories,hotels,exhibitions.
		5.eco-friendly material:can be uesd several times and can be recycled.
		6.shorter construction period,longer using times.
10	Main markets	Africa, southeast Asia and South America

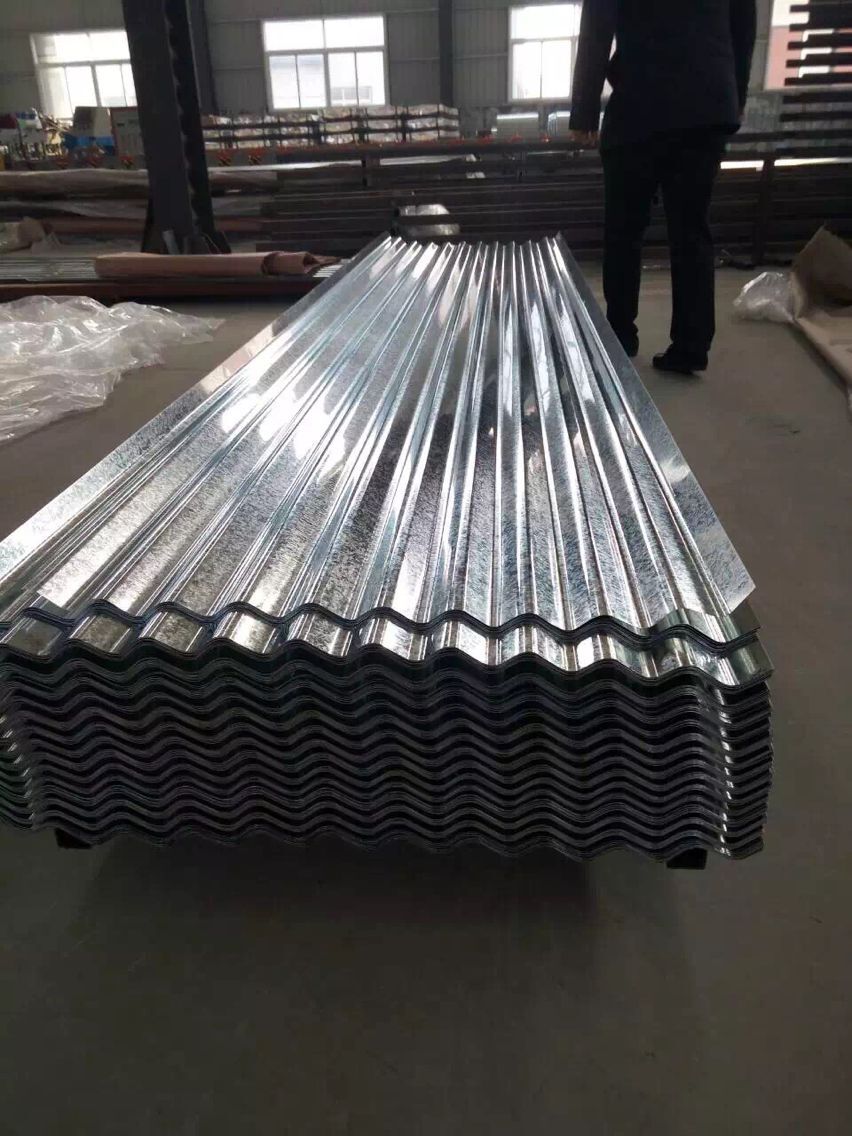

Product Pictures

Packaging & Shipping

20 Gauge Corrugated Galvanized Steel Sheet 40 - 275 G/M2 Zinc Coating

Advantage

1. Corrugated Galvanized Steel is commonly abbreviated to CGI and is a building material composed of hot-dip galvanized mild steel sheets, cold-rolled to produce a linear corrugated pattern in them.
2. The corrugations increase the bending strength of the sheet in the direction perpendicular to the corrugations, but not parallel to them.

Company Information

Qingdao Qinyuan Steel Co.,Ltd was established in January 2005. Our company has registered capital of 30 million,
total assets of 0.2 billion, area of 70 acres and more than 300 employees, and has numbers of professional engineers.

The main products of our company are prepainted galvanized steel and galvanized steel and galvalume steel and
anti-finger steel and corrugated steel sheet, which are mainly used in small factories, supermarkets, railway stations,
stadiums, airports, commercial buildings, warehouses, light steel and ship building, automotive and house hold appliance
industries.

Our company have two lines of 1250 galvanizing and one line of 1000 galvanizing which make it possible for the total
annual output of 0.4 million tons and annual sales of 1 billion yuan. Our company has become one of the local leading
companies and made outstanding contributions to the development of local economy.

Our business philosophy of "quality first, integrity-based" make it possible for our products were exported to Southeast
Asia, South Africa, South America, Middle East, European Union and other 20 countries and regions and our products
were recognized by all our customers.

Certifications

ISO,SGS,CE
